AccuReader for Kawasaki/ KW14R

• Manufacturer: AccuReader
• Product Type: Motorcycle Tools
• OE Part #: KW14R
• Code Series: A111111-A444444
• Keyway Type: STANDARD
• Keyway: Ilco KW14R

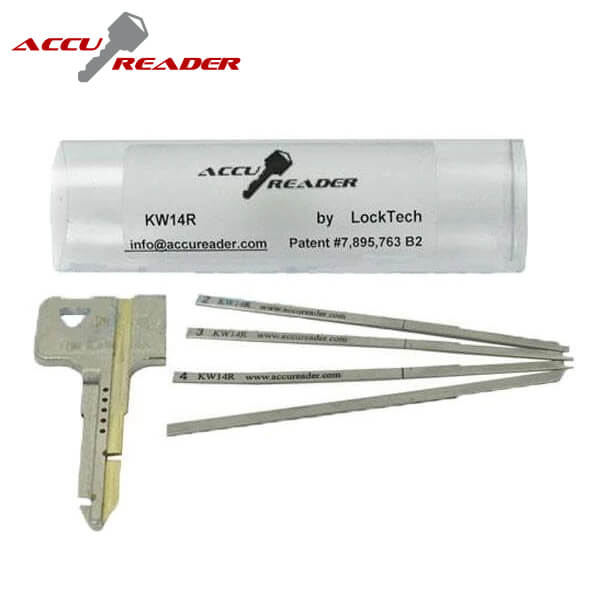

Package Contents:

1-Accu-Reader key

1-insertion/release slide

1-depth slide #4

1-depth slide #3

1-depth slide #2

1-Tube storage container

1-Tube Cap

This system will allow you to read the KW14R keyways completely and accurately without the removal of the ignition. Following a few simple steps it takes only minutes to read the depths for each cut in each position for a complete key.

The AccuReader works on the process of elimination to decipher the correct depths of the lock. By checking the deepest cut first you eliminate what the cuts are not. Therefore it is essential to always read depth slide #4 first.

The AccuReader key is designed to be used for wafer positions 3-6 on one side of the key and wafer positions 1-2 on the opposite side of the key. All the positions can be read from one side of the key, however it is recommended to flip the key over and use the other side. This allows for reading the 1- 2 wafer positions with a fully or almost fully inserted key, increasing the accuracy.

Compatible with the following:
