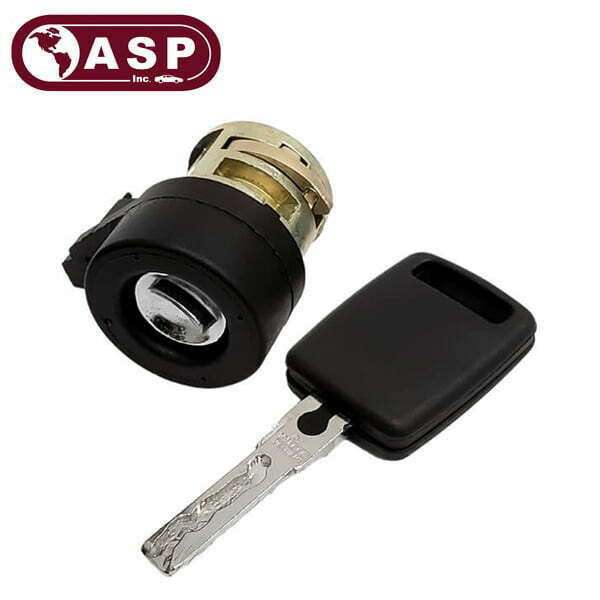

ASP – 1996-2003 / Audi / VW / HU66 / Ignition Lock Cylinder / Uncoded / C-12-108 (Gen 1)

• Keyway HU66
• Manufacturer: ASP Inc.

Compatible with the following:

• 1997 – 2002 Audi A4
• 1996 – 2002 Audi A8
• 1998 – 2002 Audi A6
• 2001 – 2003 Audi Allroad
• 2000 – 2002 Audi TT
• 1998 – 2003 Volkswagen Beetle (New Beetle)
• 1999 – 2003 Volkswagen Golf
• 1999 – 2003 Volkswagen Jetta
• 1998 – 2002 Volkswagen Passat

Identifying the difference between C-12-108, C-12-110, and C-12-111
ignition locks:
There are 3 different generations of ignition locks, difference in the black face cap which is also the transponder receiver. Generation 1 (C-12-108) and Generation 2 (C-12-110) have the small size caps which have different design connectors on the top. Generation 3 (C-12-111) has a face cap with a larger base. Our applications are based on the original VW/Audi parts information. If there is any doubt use the illustrations below to verify which one is needed for the car that you are working on.

C-12-108 (Generation 1) – small cap, flat top of connector
C-12-110 (Generation 2) – small cap, slanted top of connector
C-12-111 (Generation 3) – large cap
