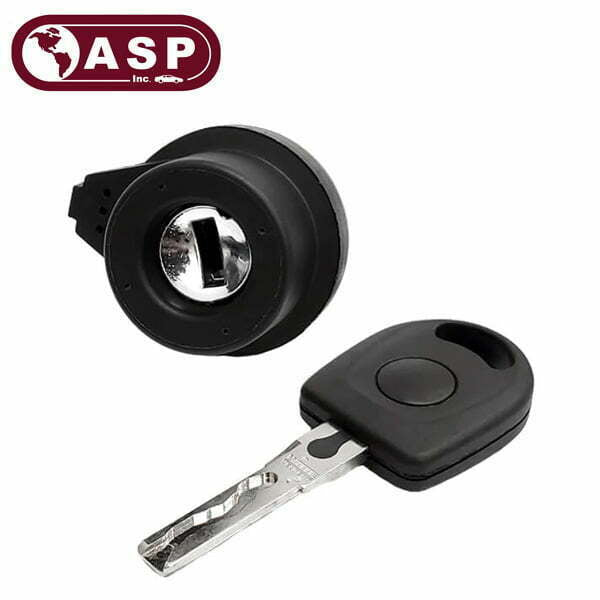

ASP – C-12-111 / Audi / VW Ignition Lock Cylinder / HU66 / Coded

• Use tumbler series P-31-171/178
• PN: C-12-111
• Keyway: HU66
• Manufacturer: ASP Inc.

Compatible with the following:

• 2006 – 2013 Audi A3
• 2003 – 2009 Audi A4
• 2003 – 2004 Audi A6
• 2005 Audi A6 Wagon
• 2003 – 2003 Audi A8
• 2004 – 2005 Audi Allroad
• 2003 – 2011 Audi TT
• 2006 – 2019 Volkswagen Beetle (New Beetle)
• 2008 – 2017 Volkswagen CC (Passat CC)
• 2007 – 2015 Volkswagen EOS
• 2007 – 2019 Volkswagen Golf
• 2004 – 2018 Volkswagen Jetta
• 2003 – 2003 Volkswagen Passat from VIN 700000
• 2004 – 2019 Volkswagen Passat
• 2006 – 2012 Volkswagen Rabbit
• 2012 – 2018 Volkswagen Sportwagen
• 2008 – 2018 Volkswagen Tiguan

Identifying the difference between C-12-108, C-12-110, and C-12-111
ignition locks:
There are 3 different generations of ignition locks, difference in the black face cap which is also the transponder receiver. Generation 1 (C-12-108) and Generation 2 (C-12-110) have the small size caps which have different design connectors on the top. Generation 3 (C-12-111) has a face cap with a larger base. Our applications are based on the original VW/Audi parts information. If there is any doubt use the illustrations below to verify which one is needed for the car that you are working on.

C-12-108 (Generation 1) – small cap, flat top of connector
C-12-110 (Generation 2) – small cap, slanted top of connector
C-12-111 (Generation 3) – large cap
