Autel – MaxiSYS MS909EV – Advanced Smart Diagnostic Tablet For Electric, Gas, Diesel, And Hybrid Vehicles / With MaxiFlash VCI/J2534
Autel – MaxiSYS MS909EV – Advanced Smart Diagnostic Tablet For Electric, Gas, Diesel, And Hybrid Vehicles / With MaxiFlash VCI/J2534
Couldn't load pickup availability
The MaxiSys MS909EV is a new generation of intelligent diagnostics for electric, hybrid, gas and diesel vehicles.

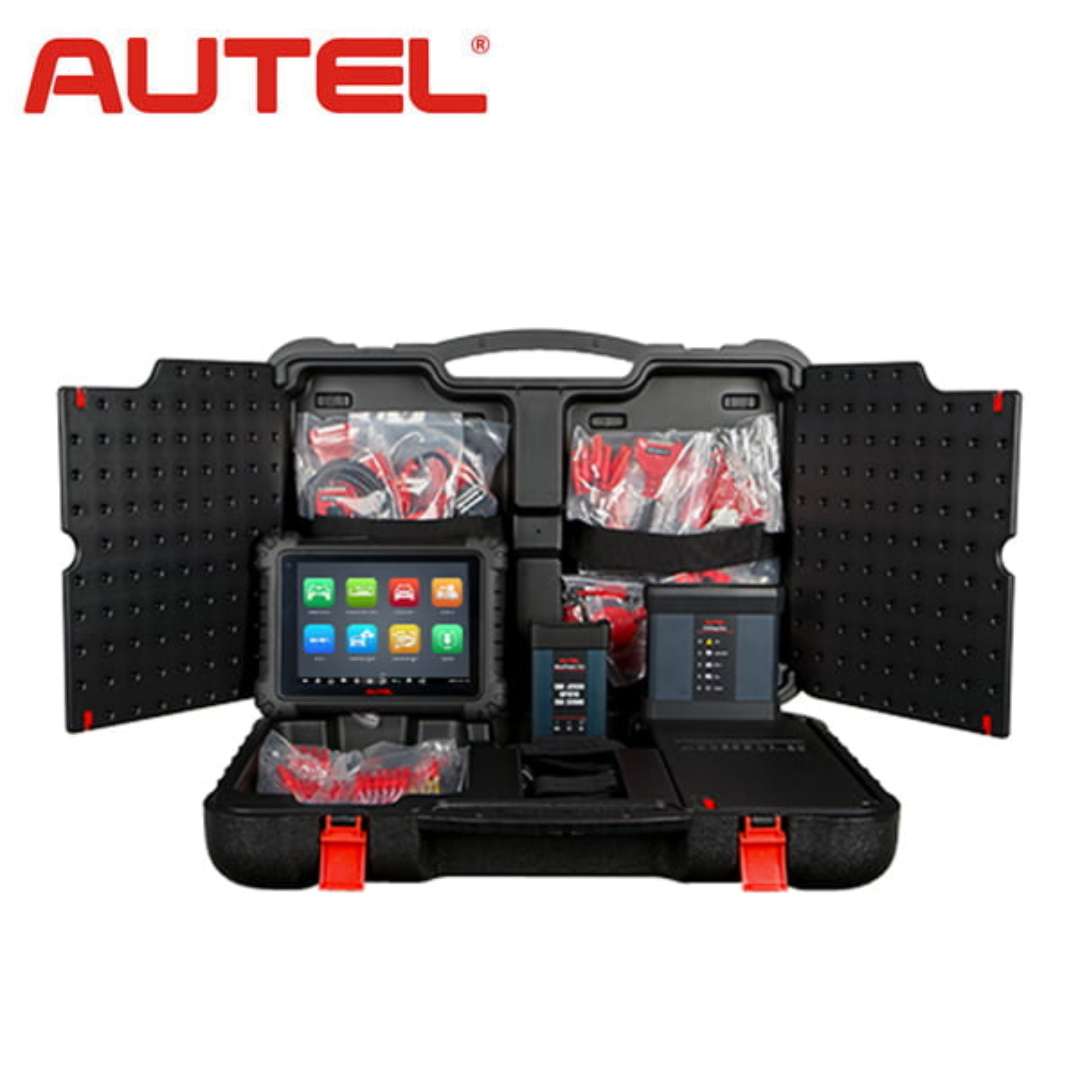

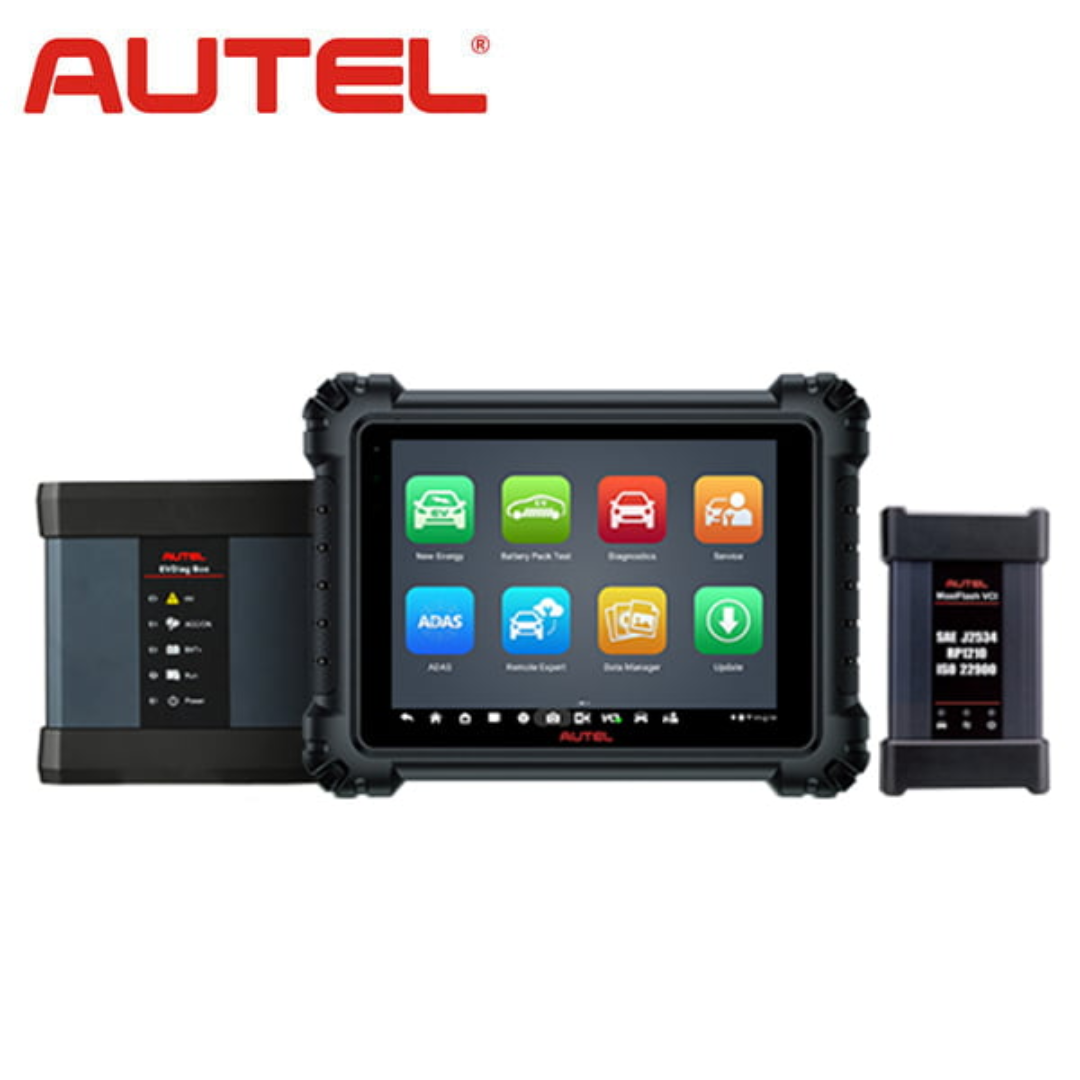

With its dedicated EVDiag Box, MaxiFlash VCI, and detailed graphics, system information, and step-by-step instructions, the MaxiSYS 909EV provides a comprehensive approach to advanced electric and hybrid vehicle diagnostics.
• Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles
• Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data
• Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions
• State of Charge and State of Health analysis for true battery condition
• Battery pack analysis can be performed via OBD or directly with included specialty cables and jumpers; the 909EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing.
• Automatic system and software updates with real-time push message notifications via internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
• One-stop multitasking designed for ideal management of shop operations to keep all data files, customer info, and vehicle records organized
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
| Operating System | Android 10.0 |
| Processor | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
| Connectivity |
|
| Camera |
|
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
|
| Power and Battery |
|
| Input Voltage | 12V/3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions(W x H x D) | 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″) |
| Weight | 1.66kg (3.66 lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
Comparison:
| MS909EV | Ultra EV | MS909 | MS919 | Ultra | |
| Hardware | |||||
| Connection | Bluetooth MaxiFlash VCI | Bluetooth MaxiFlash VCMI | Bluetooth MaxiFlash VCI | Bluetooth MaxiFlash VCMI | Bluetooth MaxiFlash VCMI |
| Screen | 9.7inch touchscreen | 12.9inch touchscreen | 9.7inch touchscreen | 9.7inch touchscreen | 12.9inch touchscreen |
| Battery | 15,000mAh | 18,000mAh | 15,000mAh | 15,000mAh | 18,000mAh |
| Processor | 2.2GHz+1.8GHz octa-core |
2.2GHz+1.8GHz octa-core |
2.2GHz+1.8GHz octa-core |
2.2GHz+1.8GHz octa-core |
2.2GHz+1.8GHz octa-core |
| Memory | 128GB SSD/ 4GB RAM | 256GB SSD/ 4GB RAM | 128GB SSD/ 4GB RAM | 128GB SSD/ 4GB RAM | 256GB SSD/ 4GB RAM |
| Camera | 16MP rear/16MP front | 16MP rear/5MP front | 16MP rear/16MP front | 16MP rear/16MP front | 16MP rear/5MP front |
| Docking Station | Included | Included | |||
| EVDiag Box | Included | Included | |||
| Software | |||||
| Operating System | Android 10.0 | Android 7.0 | Android 10.0 | Android 10.0 | Android 7.0 |
| Automatic Detection | Auto-VIN/Auto-Scan Scan VIN/Plate Scan |
Auto-VIN/Auto-Scan Scan VIN/Plate Scan |
Auto-VIN/Auto-Scan Scan VIN/Plate Scan |
Auto-VIN/Auto-Scan Scan VIN/Plate Scan |
Auto-VIN/Auto-Scan Scan VIN/Plate Scan |
| Secure Gateway Access | Authorized FCA Access With AutoAuth account |
Authorized FCA Access
With AutoAuth account |
Authorized FCA Access With AutoAuth account |
Authorized FCA Access With AutoAuth account |
Authorized FCA Access
With AutoAuth account |
| License Plate Reader | Available on select vehicles | Available on select vehicles | Available on select vehicles | Available on select vehicles | Available on select vehicles |
| Vehicle Coverage | U.S., European and Asian electric, gas and diesel, and hybrid vehicles | U.S., European and Asian electric, gas and diesel, and hybrid vehicles | U.S., European and Asian electric, gas and diesel, and hybrid vehicles | U.S., European and Asian electric, gas and diesel, and hybrid vehicles | U.S.,European and Asian electric, gas and diesel, and hybrid vehicles |
| OBDII Test Modes | All 10 test modes | All 10 test modes | All 10 test modes | All 10 test modes | All 10 test modes |
| Service Resets | 36 service features | 36 service features | 36 service features | 36 service features | 36 service features |
| Diesel PM | Reset diesel emissions
Light&medium duty vehicles |
Reset diesel emissions
Light&medium duty vehicles |
Reset diesel emissions
Light&medium duty vehicles |
Reset diesel emissions
Light&medium duty vehicles |
Reset diesel emissions
Light&medium duty vehicles |
| System Diagnostics | Access all modules in all systems | Access all modules in all systems | Access all modules in all systems | Access all modules in all systems | Access all modules in all systems |
| High-voltage System Diagnostics | Diagrams of high-voltage system block | Diagrams of high-voltage system block | |||
| Battery Pack Diagnostics | SOC and SOH analysis | SOC and SOH analysis | |||
| Component Activations | Bi-directional control | Bi-directional control | Bi-directional control | Bi-directional control | Bi-directional control |
| Enhanced Functions |
Coding &adaptations |
Coding &adaptations | Coding &adaptations | Coding &adaptations | Coding& adaptations |
| ADAS Calibration | ADAS Upgrade & Frame Kit Purchase required |
ADAS Upgrade & Frame Kit Purchase required |
ADAS Upgrade & Frame Kit Purchase required |
ADAS Upgrade & Frame Kit Purchase required |
ADAS Upgrade & Frame Kit Purchase required |
| Cloud Services | Remote programming & Report storage | Remote programming & Report storage | Remote programming & Report storage | Remote programming & Report storage | Remote programming & Report storage |
| Repair Assist | Guided procedures with DTC analysis
& fault code solutions |
Guided procedures with DTC analysis
& fault code solutions |
Guided procedures with DTC analysis
& fault code solutions |
Guided procedures with DTC analysis
& fault code solutions |
Guided procedures with DTC analysis
& fault code solutions |
| Topology Module Mapping | Color coded all system status screen on supported vehicles | Color coded all system status screen on supported vehicles | Color coded all system status screen on supported vehicles | Color coded all system status screen on supported vehicles | Color coded all system status screen on supported vehicles |
| Relevant Cases | DTC troubleshooting | DTC troubleshooting | DTC troubleshooting | DTC troubleshooting | DTC troubleshooting |
| Technical Service Bulletins | Available on select vehicles | Available on select vehicles | Available on select vehicles | Available on select vehicles | Available on select vehicles |
| Oscilloscope | VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester | VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester | VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester | ||
| Split ScreenDisplay | View multiple functions at once | ||||
