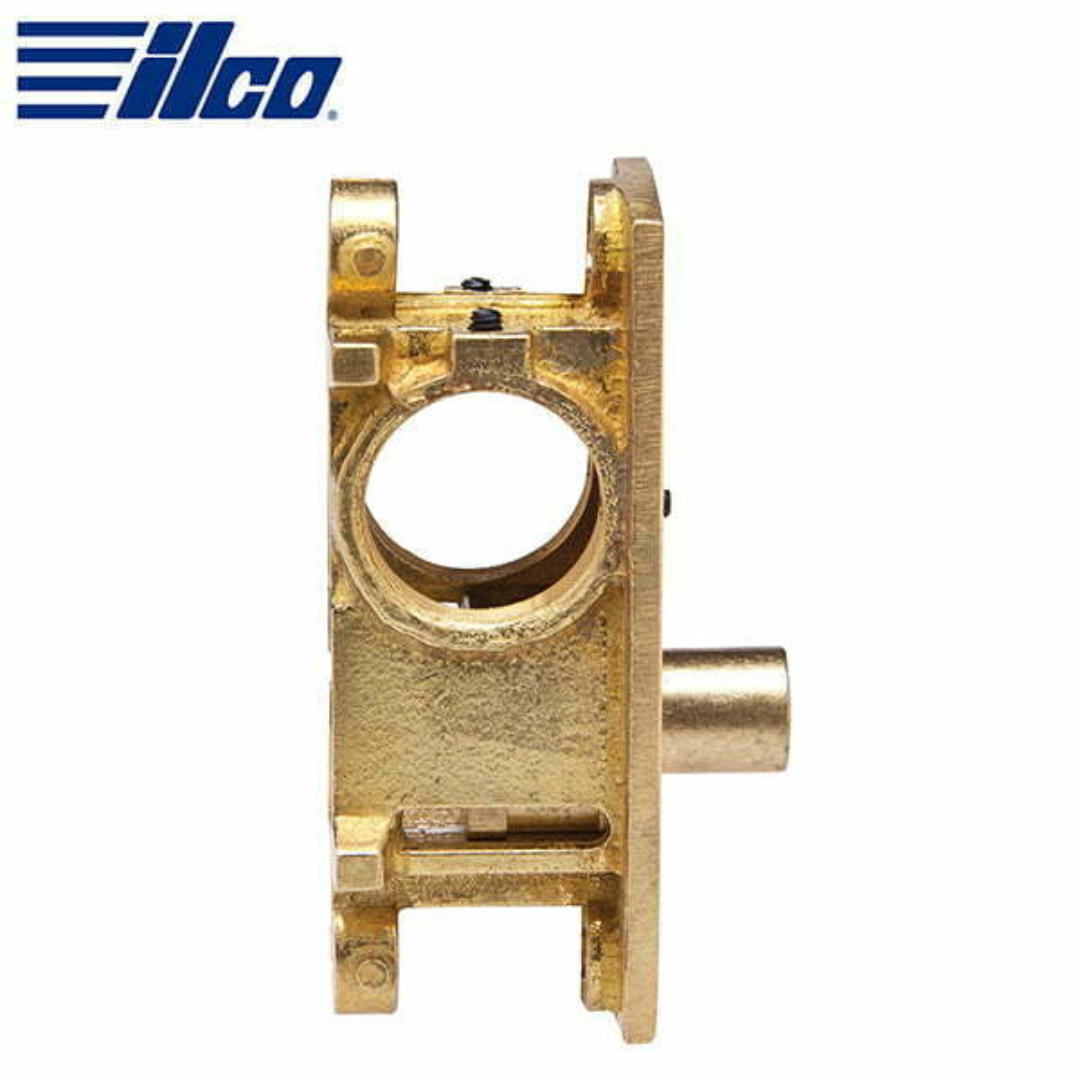

ILCO – BR Series – Glass Door Bottom Rail Lock (BRL-03)

This lock is installed in the bottom rail or in patch fitting of an “all glass” door. Bolt is retracted by a 1 5/32″ (29.35 mm) mortise cylinder with standard cam.

Length: 41⁄8” (104.77 mm)
Height: 19⁄16” (39.69 mm)
Width: 15⁄16” (33.34 mm)
