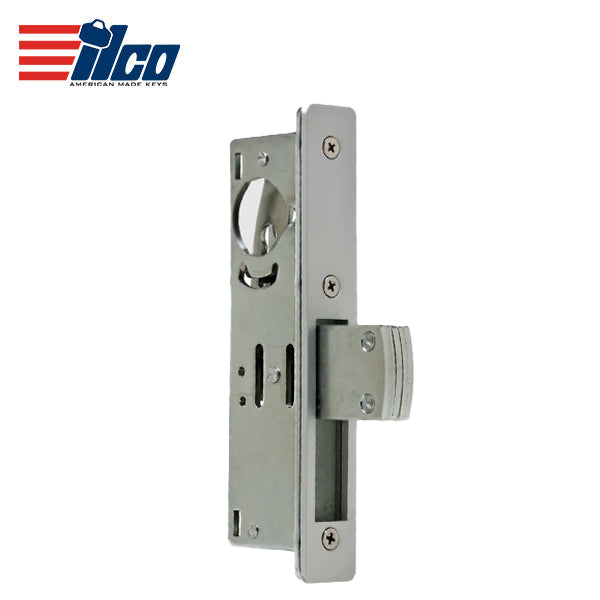

ILCO – Deadbolt Mortise Lock – 185 Series

Storefront Hardware Deadbolts – Deadbolt Mortise Lock – 185 Series

• For Aluminum Stile Doors
• Five-ply laminated steel bolt with concealed hardened steel pin provides maximum security on single leaf doors
• Cycle testing exceeds ANSI Grade 1 standards
• Steel case with corrosion resistant plating
• Accepts standard 1 5/32″ (29.36 mm) Zinc or Brass threaded mortise cylinder
• Interchangeable with 451 Series Deadlatches

Backsets: 31/32″ (24.59 mm), 1 1/8″ (28.58 mm), 1 1/2″ (38.1 mm)
Bolt Dimension: Straight Bolt: 5/8″W x 2 7/8″L (15.88 mm x 73.03 mm)
Hook Bolt: 5/8″W x 1 3/8″L (15.88 mm x 34.9 mm)
Throw: Straight Bolt: 1 3/8″ (34.9 mm)
