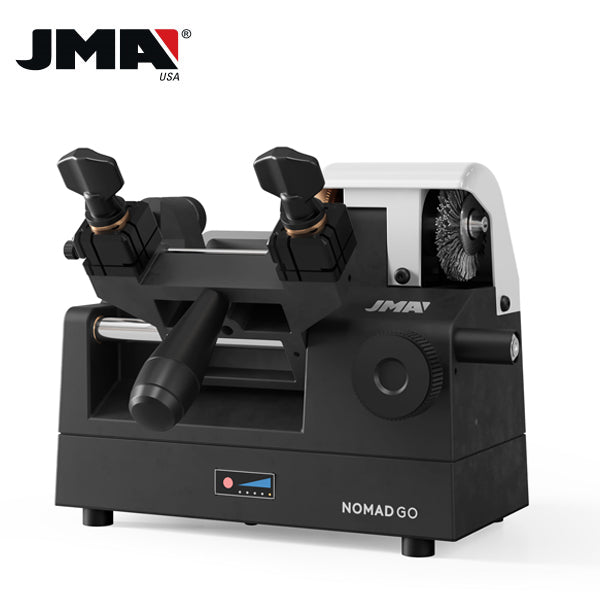

JMA – NOMAD GO – Portable Key Duplicator Machine – Built-In Battery

JMA – NOMAD GO – Portable Key Duplicator Machine – Built-In Battery

$1,154.98 CAD
$1,154.98 CAD
Sale Sold out

The ease with which the NOMAD machine can be moved around is now enhanced by complete and utter autonomy thanks to a built-in battery.



FOUR WAY JAWS AND ERGONOMICAL CLAMPS

  • High quality steel jaws for precision cutting. Four way jaws allow greater ease and reliability in the clamping of the keys.
  • The carriage offers smooth wheel movements which facilitates duplication and reduces the force needed to operate the machine.
  • This calibration system allows an exact adjustment of the tracer and guarantees cut precision.

Technical Data Comparison

Technical Data / Datos Técnicos NOMAD NOMAD GO NOMAD BIT NOMAD BIT GO
Cutter / Fresa FP11 HSS TiAlN (63x5x16) or FP32 HSS (63×2.4×16) FP11 HSS TiAlN (63x5x16) or FP32 HSS (63×2.4×16) FP8 HSS (63×1.4×16) FP8 HSS (Ø63×1.4×16)
Clamps / Mordazas Reversible 4 faced Reversible 4 faced Reversible 3 faced 3-way clamp
Width / Anchura 266 mm 266 mm 266 mm 266 mm
Height / Altura 215 mm 260 mm 215 mm 215 mm
Depth / Profundidad 165 mm 165 mm 165 mm 165 mm
Weight / Peso 6.5 kg 8 kg 7.5 kg 9 kg
Speed / Velocidad 2800 rpm 2100 rpm 2800 rpm 2300 rpm
Useful Run / Ejecución útil X = 53 mm X = 53 mm X = 73 mm X = 73 mm
Displacement / Desplazamiento Over Glycodur® bearings Over Glycodur® bearings Over Glycodur® bearings On self-lubricating bearings
Motor 220 VDC – 150W or 110 VDC – 150W 24 VDC – 150W 220 VDC – 150W or 110 VDC – 150W Motor DC 24Vdc 150W
Lithium-Ion Battery – 25.9V 2500mA – 25.9V 2500mAh
Power Supply / Alimentación 220 VAC or 110 VAC Power supply 29.4V 1A Lithium-Ion Battery 25.9V 2500mAh 220 VAC or 110 VAC Power supply 110/220 Vac at 29.4 Vdc 1 Amp 30 W
