LocksmithEssentials.ca

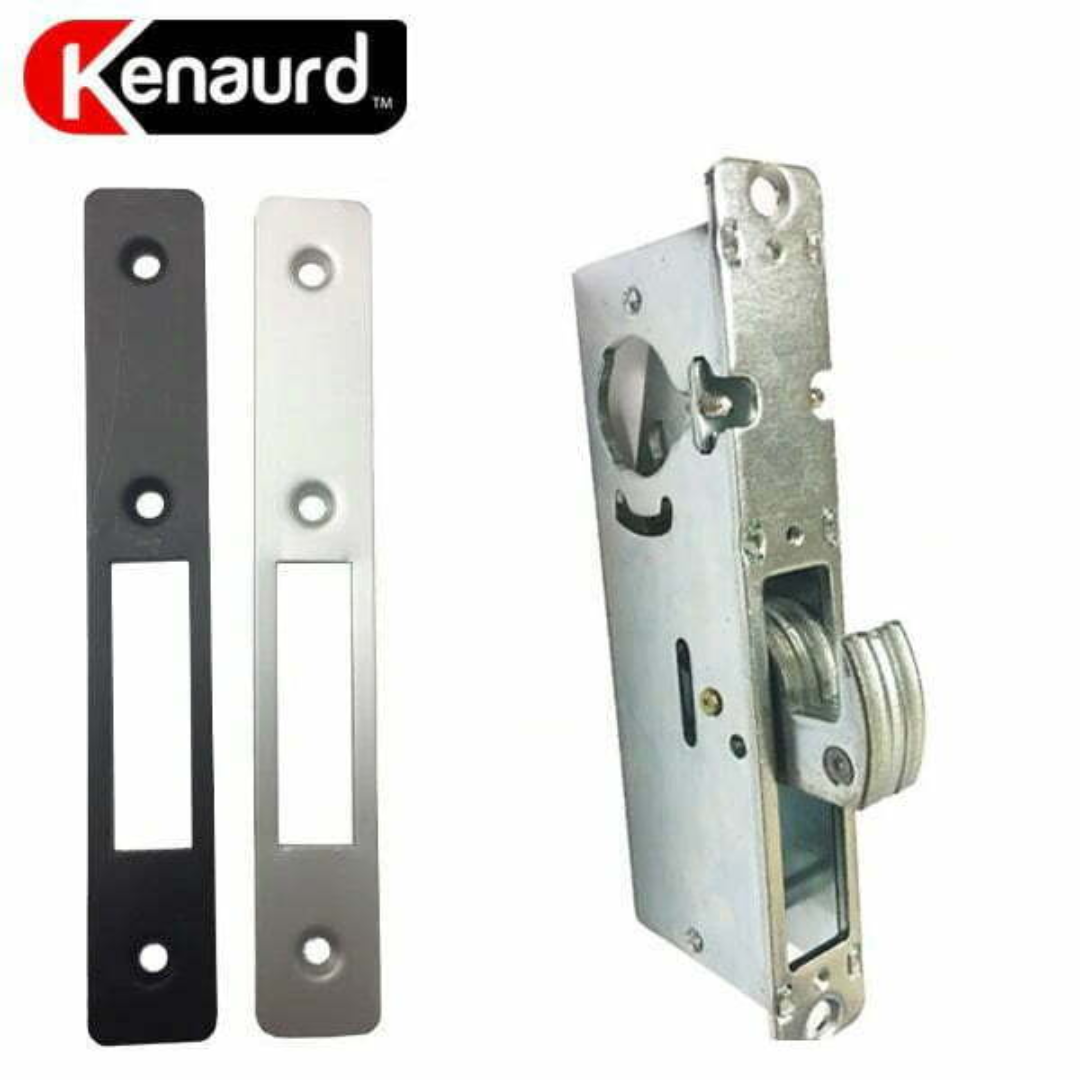

Kenaurd Narrow-Stile 1-1/8″ Hook Bolt Lock Body With 2 Faceplates
Kenaurd Narrow-Stile 1-1/8″ Hook Bolt Lock Body With 2 Faceplates
Regular price
$29.94 CAD
Regular price
Sale price
$29.94 CAD
Unit price
/
per
Couldn't load pickup availability
This Premium Narrow-Stile Hook Bolt Lock Body offers a flexible solution for traffic control.
The Lock Body includes 2 faceplates in Oil Rubbed Bronze and Aluminum Finish. Fits standard 1″ to 1-1/8″ Mortise cylinders.
| Backset | 1-1/8″ [28.6 mm] |
| Handing | Easy adjustable to LH or RH applications |
| Case | Zinc Plated Steel lock body |
| Case Dimensions: | 7/8″ width x 6″ Length |
| Cylinder: | Accepts standard 1″ to 1-1/8″ Mortise Thumbturns and 1″ to 1-1/8″ Mortise Lock Cylinders with Adams Rite (A/R) cams. (Cylinder Not Included) |
| Hook Bolt | Width – 5/8″, Length – 1-3/8″, Throw – 15/16” |
| Faceplate | Measures 1″ x 6-7/8″ [25.4 mm x 174.6 mm]. |
| Strike | Standard strike furnished for flat jamb where door closes flush or nearly flush. |
| Standard Package | Individually boxed with strike plate, 2 faceplates, and mounting screws.
Available in 25 Count Carton / Box Cylinders, paddles, handles available separately. |
