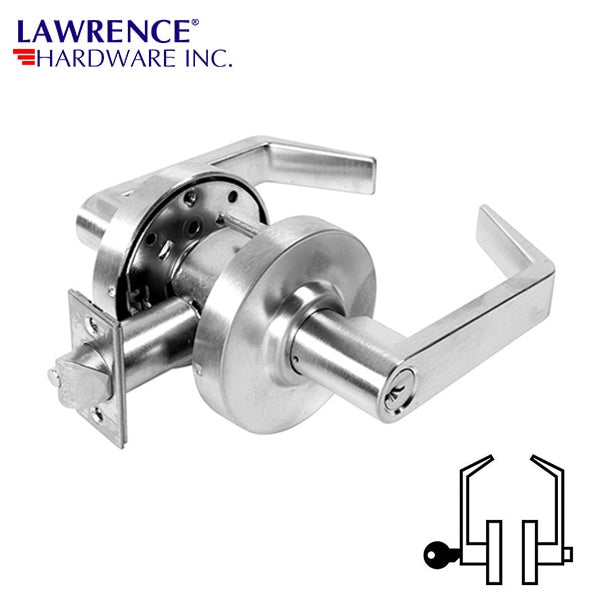

LAWRENCE HARDWARE 5000 Series – Grade 1 – Entrance – 26D Lever Lockset – Trim L / LH5004

Entrance Function – Push button locks outside lever until unlocked by key or by turning inside lever.

• ANSI/BHMA Grade 1 – 5000 Series Cylindrical Lock
• Trim: L
• Finish: 26D
• Part Number: LH5004
• Function: Entrance

5000 Series Cylindrical Grade 1 Extra Heavy Duty Levers

• Designed for extra heavy duty commercial, industrial and institutional applications
• No exposed mounting screws
• Non-handed
• Through Bolt Mounting 2-3/4” centre to centre reduces chassis rotation

Features

• Quality cast and machined stainless steel hubs mounted with heavy duty return springs tested to over one million cycles without noticeable lever sag
• Heavy rose liner material provides attack resistance
• Heat treated heavy gauge cold rolled steel spindles withstand 1000 inch pounds of torque
• The threaded outside rose assembly is adjustable for door thickness
• Free-wheeling clutch style lever standard

Certifications

• ANSI/BHMA certified A156.2 Series 4000 Grade 1
• ADA Compliant A117.10
• cUL/UL Listed for all functions up to 3 hours

Specifications

• For Doors 1-3/8” to 1-3/4” (35mm to 44mm)
• Backset 2-3/4” (70mm) standard 2-3/8” (60mm) available
• Front Stainless Steel or Brass, 2-1/4” x 1-1/8” (57mm x 29mm)
• Strike ANSI (4-7/8” x 1-1/4”) strike standard
• Roses 3-1/2” (90mm) Diameter Stainless steel or brass base metal
• Handing Non-handed
• Latchbolt Stainless steel 17/32” (13.5mm) throw standard.  3/4” (19mm) throw available
• Cylinder Solid brass 6-pin cylinder Schlage C keyway with two keys per lock standard.
• IC Core Solid brass 6 or 7-pin core sold separately
• keying Keyed Different (KD) standard.  Available Masterkeyed (MK), Keyed Alike (KA) and Construction Masterkeyed (CMK) see Keys and Keying section for additional options
• Finishes US19 (622) US26D (626) for levers and US32D (630) knobs.
• Other finishes available by special order
