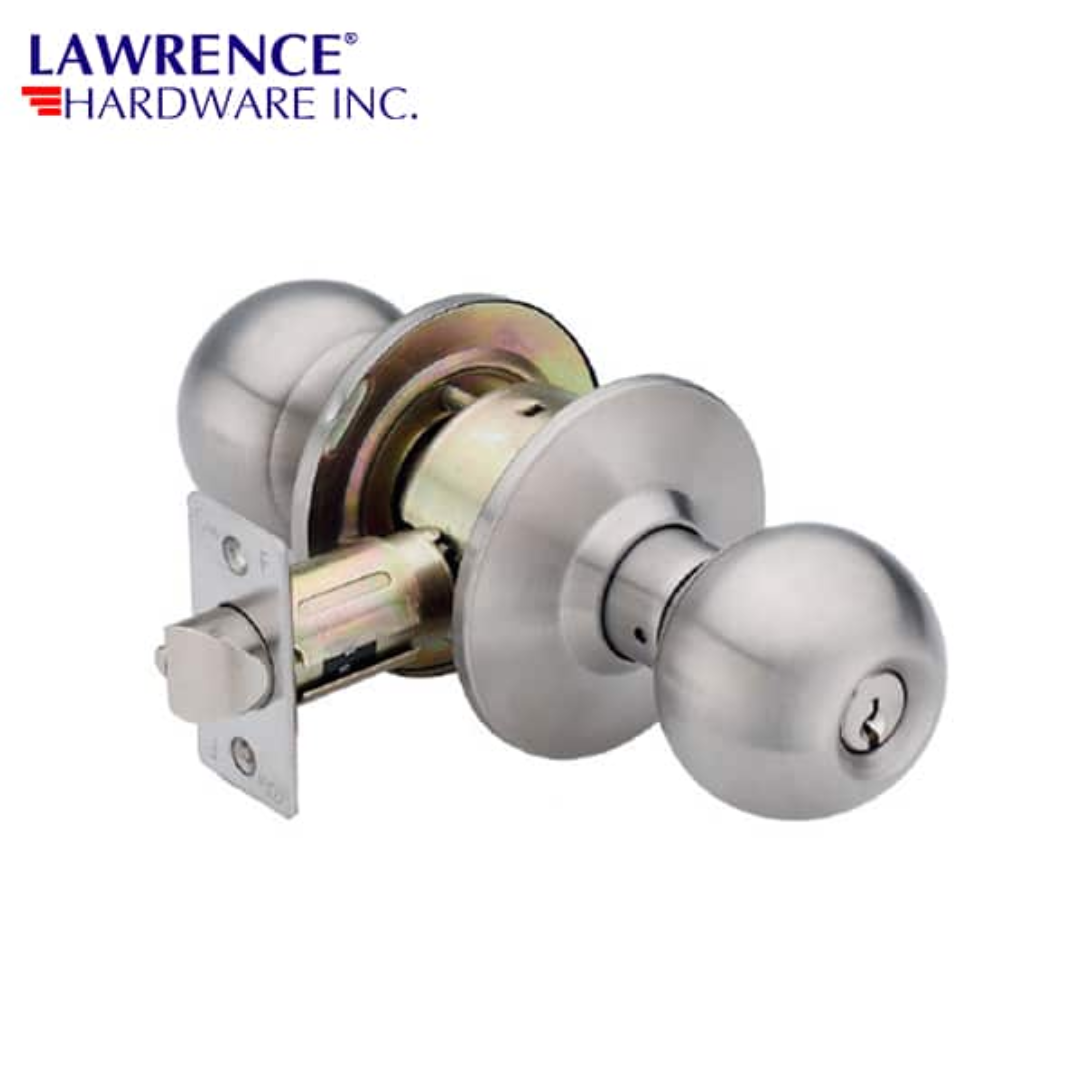

LAWRENCE HARDWARE 5300 SERIES – Institution / US32D Ball Knob / Door Knob / LH5327B

• Finish: US32D
• Part Number: LH5327B
• Function: Institution
• A KEY-IN KNOB LOCKSET DESIGNED FOR STANDARD DUTY COMMERCIAL AND QUALITY RESIDENTIAL MARKETS.
• ANSI A156.2, SERIES 4000, GRADE 2
• SCHLAGE 6 PIN KEYWAY CYLINDER, WIESER OPTIONAL
• UL AND CUL LISTED FOR 3 HOURS FIRE RATED DOOR

Both knobs always fixed/rigid.

Latchbolt retracted by key from either side.

• THE 5300 SERIES CYLINDRICAL LOCKSET IS ENGINEERED TO MEET UL AND ULC REQUIREMENTS AND IS CERTIFIED
• UNDER ANSI A156.2 FOR GRADE 2 WITH LIFE FREQUENCY EXCEEDING 400,000 CYCLES.
• SUITABLE FOR USE ON ALL DOORS IN PUBLIC BUILDINGS, HOUSES, COMMERCIAL BUILDINGS, HOTELS AND HOSPITALS.
• PRODUCT IS CERTIFIED BY THE UNDERWRITERS LABORATORIES (UL AND ULC LISTED) AND IT IS DESIGNED TO
  OPERATE FOR MORE THAN 3 HOURS IN CASE OF FIRE.

Door Preparation
If weather-stripping, acoustical material or silencers are used on the door or frame, care must be taken
in the installation so that it will not interfere with the ease in which the latchbolt enters the strike.

Specifications
Applications: For offices, schools, hospitals, apartments, hotels / motels and other public
buildings
Door Thickness: 1-3/8 to 1-3/4 (35 mm to 45 mm)
Backset: 2-3/8 (60 mm) or 2-3/4 (70 mm) standard
Front: Brass, Bronze: 2-1/4 x 1-1/8 standard
Strike: Brass, Bronze: ASA strike standard full lip.
Handing: Universal Non handed
Latchbolt: Brass, throw as standard
Keys: 2 pcs, Solid Brass
Cylinder: Brass, Schlage 6 pin Keyway standard. Others available upon request.
Master keying: Can be master keyed or grand master keyed
Finish: US26D, US3 Stock. Other finishes available upon request.
Split Finishes: Available upon request. Outside finish must be specified first and will match t
strike finish unless otherwise specified. Please contact a sales or customer representative for more information.
Listing: UL &ULC Listed for use on Fire Doors (3 hours rated).
