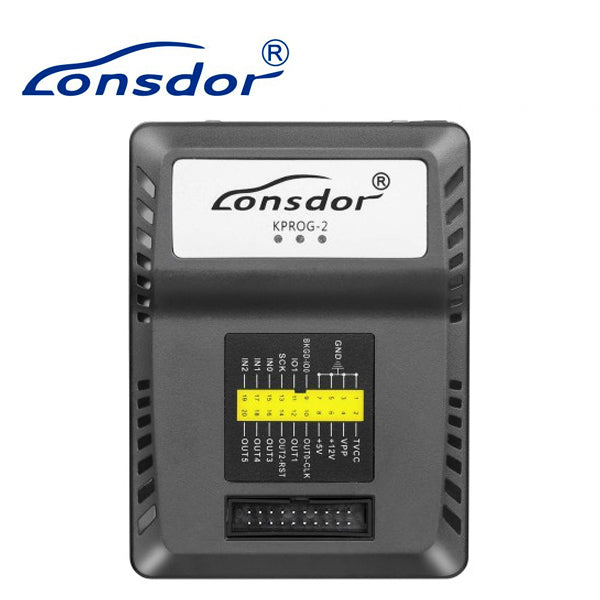

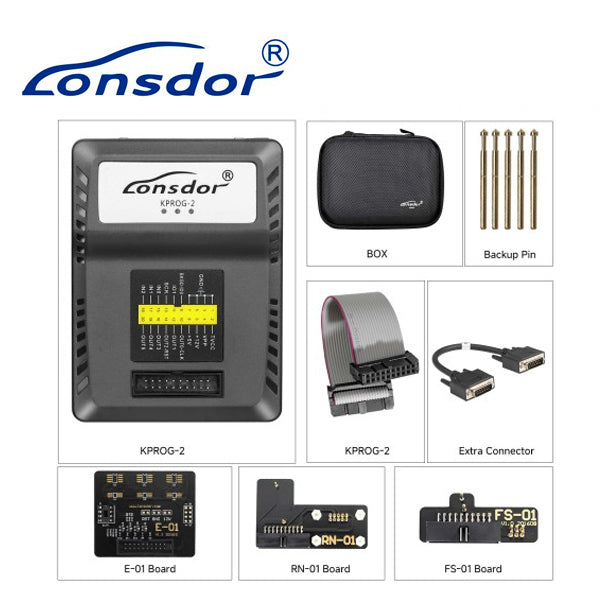

Lonsdor – KPROG 2 Adapter for Lonsdor K518 Pro & K518 FCV Key Programmer
Lonsdor – KPROG 2 Adapter for Lonsdor K518 Pro & K518 FCV Key Programmer
Regular price
$284.60 CAD
Regular price
Sale price
$284.60 CAD
Unit price
/
per
Couldn't load pickup availability
Use the Lonsdor K518 Pro / K518 FCV key programmer with the Kprog2 to read and write EEPROM SOIC chips and MCU chips. This lets you easily retrieve data for backups or replacements.
Note: The KPROG2 is not included with the K518 Pro / FCV and must be purchased separately.
KPROG adapter must be bound to K518 before using:
Step 1. Connect adapter to K518 with mainline
Step 2. Connect K518 with 12V power supply
Step 3. Enter into “Setting”
Step 4. Click “Bind adapter”
Step 5. Click “OK” to complete
Lonsdor KPROG-2 Adapter Read & Write EEPROM Chip List
| 24 series Support ATMEL & ST chip |
| AT24C01 128 byte |
| AT24C02 256 byte |
| AT24C04 512 byte |
| AT24C08 1K |
| AT24C16 2K |
| AT24C32 4K |
| AT24C64 8K |
| AT24C128 16K |
| AT24C256 32K |
| 93 series; Support ATMEL & ST chip |
| AT93C46-8bit 128 byte read/write |
| AT93C56-8bit 256 byte read/write |
| AT93C57-8bit 256 byte read/write |
| AT93C66-8bit 512 byte read/write |
| AT93C76-8bit 1024 byte read/write |
| AT93C86-8bit 2048 byte read/write |
| AT93C46-16bit 128 byte read/write |
| AT93C56-16bit 256 byte read/write |
| AT93C57-16bit 256 byte read/write |
| AT93C66-16bit 512 byte read/write |
| AT93C76-16bit 1024 byte read/write |
| AT93C86-16bit 2048 byte read/write |
| 25 series; Support ATMEL chip |
| AT25010 128 byte |
| AT25020 256 byte |
| AT25040 512 byte |
| AT25080 1K |
| AT25160 2K |
| AT25320 4K |
| AT25640 8K |
| AT25128 16K |
| AT25256 32K |
| AT25M01 1M |
| AT25M02 2M |
| 95 series; Support ST chip |
| 95010 128 byte |
| 95020 256 byte |
| 95040 512 byte |
| 95080 1K |
| 95160 2K |
| 95320 4K |
| 95640 8K |
| 95128 16K |
| 95256 32K |
| 95M01 1M |
| 95M02 2M |
